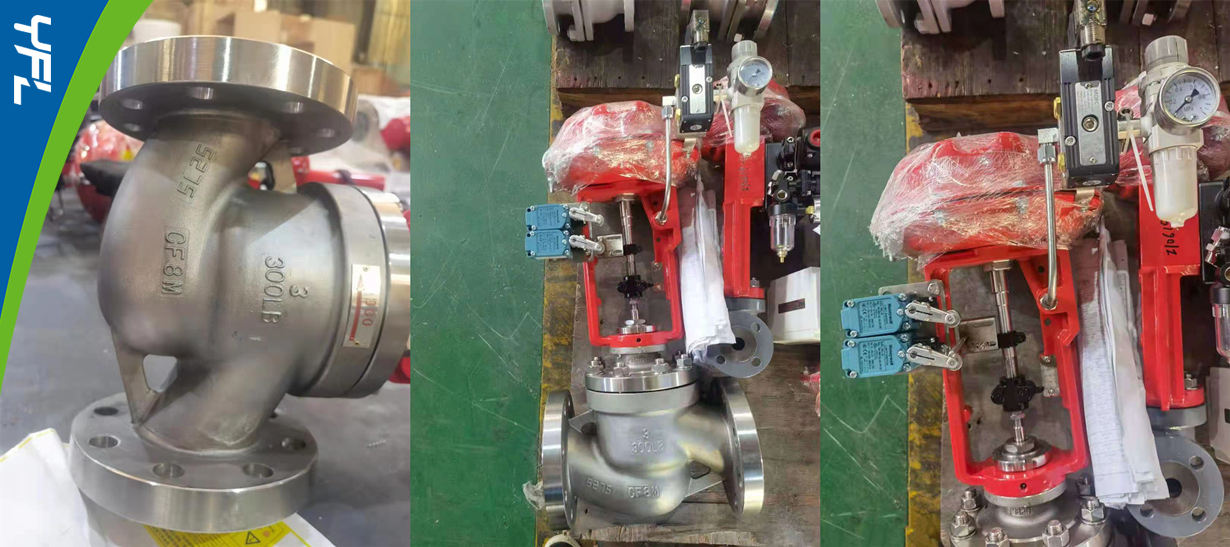

YFL Pneumatic diaphragm single seat globe valves are exported to Italy.

The pneumatic diaphragm single seat globe control valves detailed technical specifications:

1. Size: 3’’

2. Pressure: 300#RF

3. Flow characteristic: quick open

4. Rated Kv Value: 110

5. Leakage class: Class V according to ANSI FCI70-2

6. Rated stroke: 30

7. Action: Air open

8. Failure position: Close

9. Bonnet type: standard

10. Working temperature:-20℃-150℃

11. Flange dimensions: ASME B16.5

12. Operation: Singe acting Spring return Pneumatic diaphragm

13. Air supply:3.5bar

14. Solenoid valve: Mokong MC50-13N1001G0S

15. Air regulator and filter: SMC AW20-02B-2-A

16. Limit Switch: Honeywell SZL-WL-A/2 pcs

17. Protection grade: IP68

18. Electric connection: 1/2 NPT

19. Pneumatic connection: 1/4 NPT-diamter:8mm
